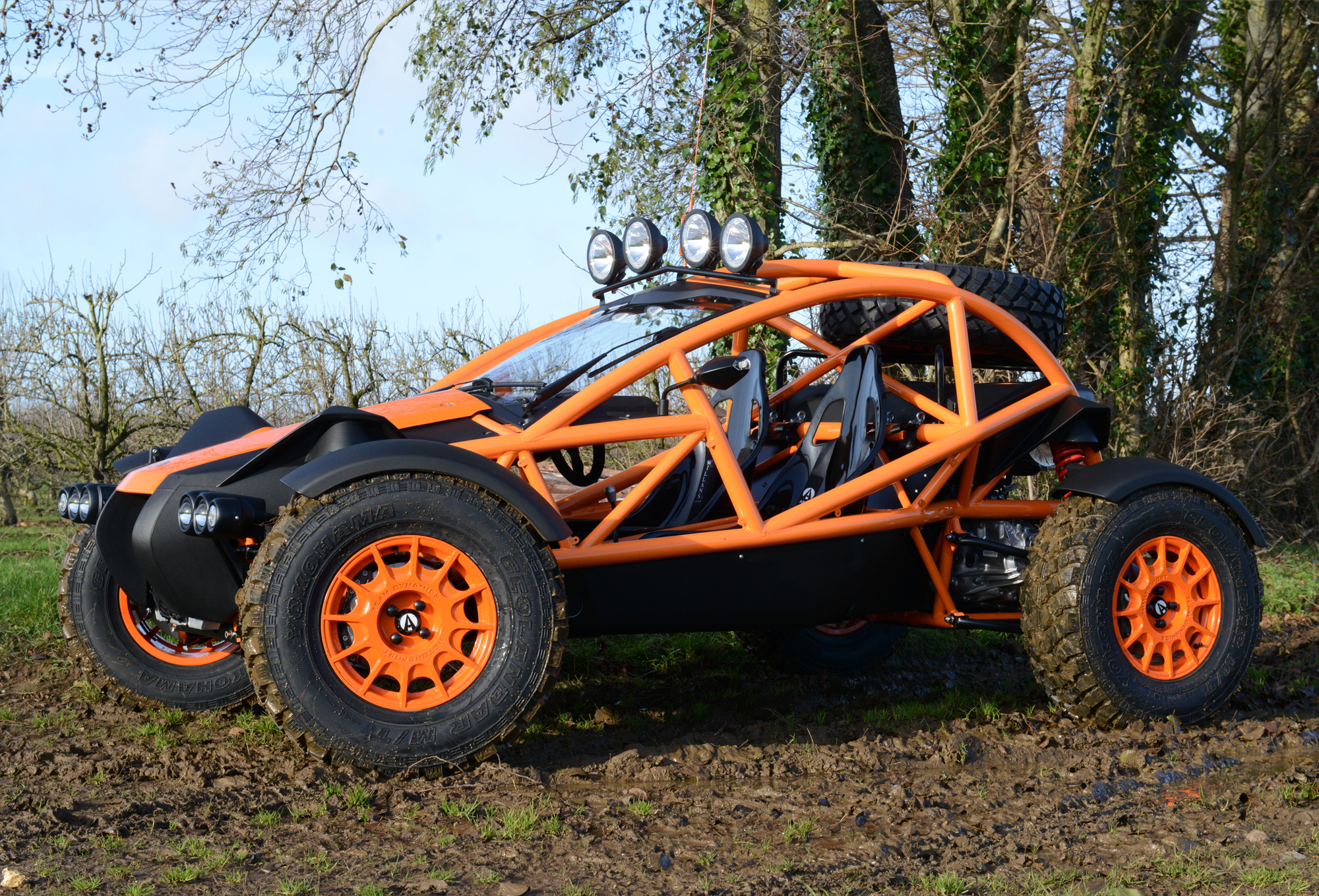

nomad tactical

Pricing from $90,450

Specifications

Engine:

  • 2.4 K24 Honda 4-cylinder i-VTEC
  • Alloy block, cylinder head, sump
  • Displacement 2354cc
  • Bore and stroke 87mm x 99mm

Power:

  • 230hp @ 7200rpm
  • Torque: 220 ft/lbs @ 4300rpm

Gearbox:

  • 6-speed close ratio + reverse aluminum alloy casing
  • Hydraulic clutch

Fuel System:

  • Indirect multi-port grouped fuel injection
  • Continuous flow 3.5 bar electric fuel pump
  • Twin fuel filters
  • 13 gallon aluminum fuel tank

Electrical:

  • Electric coil over plug ignition
  • Hondata engine management system
  • Thatcham immobilizer system
  • Battery master switch

Cooling:

  • Front mounted fabricated radiator
  • Pressurized, centrifugal 82L/min. coolant pump

Intake:

  • ITG foam filter system
  • Aluminum air box

Exhaust:

  • Fabricated stainless steel exhaust manifold
  • Stainless silencer
  • Exhaust guard

Chassis:

  • Bronze welded steel tube
  • Powder coated finish
  • Aluminum bulkheads

Suspension:

  • Double unequal length TIG welded fabricated wishbones front and rear
  • Competition spec high strength wishbones
  • Outboard adjustable Ohlins dampers front and rear
  • Alloy steel Eibach coil springs front and rear

Steering:

  • Rack and pinion cast alloy steering rack 1.7 turns lock to lock
  • Collapsible offset steering column
  • Adjustable rod ends
  • 305mm race suede covered steering wheel

Braking:

  • Alcon four-piston calipers
  • 290mm discs
  • Tilton aluminum racing pedal box
  • Twin master cylinders adjustable front/rear bias
  • Parking brake
  • Hydraulic rally-style hand for rear Alcon calipers

Wheels:

  • 7Jx15 rally spec high strength

Screen:

  • full front glass windscreen including wipers

Body:

  • Non-structural roto-mould toughened polyethylene
  • Composite mix
  • Front winch bumper
  • Rear bumper
  • Warn wich
  • Fronts suspension box and body tub guard
  • Coolant pipe guard
  • Sump guard

Seating:

  • Individual seat units composite woven cloth
  • 5-position adjustment
  • 3" 6-point harness for driver and passenger

Instruments:

  • LCD digital display with speed, tachometer, water temperature, fuel level, odometer, trip
  • Warning lights: ignition, lights, brake, oil, beam, indicators, alarm

Dimensions:

  • Length: 3215mm
  • Width: 1850mm
  • Height: 1425mm
  • Track: 1585mm front and rear
  • Wheelbase: 2348mm
  • Approach angle: 71 degrees
  • Departure angle: 82 degrees

Weight:

  • 1480lbs

Lighting Kit:

  • Projector headlamps, LED indicators, stop/tail/side/repeaters
  • Rear fog lamp, reverse lamp, number plate lamp
  • Horn
  • Front and rear mudguards
  • Light mounting bar

Performance:

  • 0-60MPH: 3.4 seconds (0-100kph) estimated
  • 0-100mph: 8.7 seconds (0-165kph) estimated
  • Top speed: 125mph estimated
